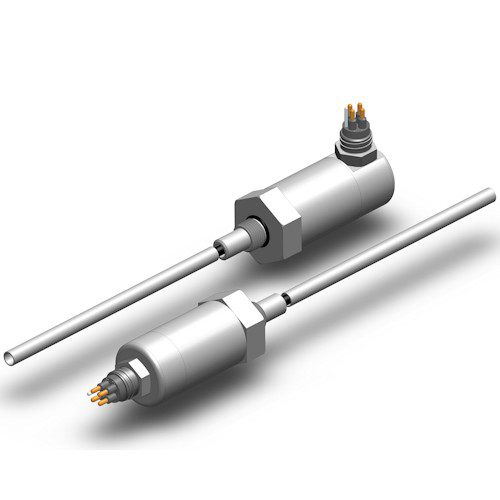

The X120 is an ATEX and IECEx approved version of the S120 cylinder sensor designed for high-pressure environments.

It is sealed to withstand up to 350 bar combined hydraulic and water pressure and is suitable for underwater operation up to 3500 meters.

The compact sensor provides a linear output proportional to displacement and is calibrated to travel ranges from 0–5 mm to 0–800 mm with integrated EMC protection.

The body and target tube are manufactured from 316 stainless steel for durability, corrosion resistance, and long service life.

The sensor supports M18 or 3/4" UNF mounting threads and operates with Positek X005 galvanically isolated amplifiers supporting 0.5–9.5V or 4–20mA outputs.

Unit of Measure

General

Brands

 N/A Positek

Key Features

 N/A
  • ATEX/IECEx approved to: Ex II 1G : Ex ia IIC T4 GA (Ta = -40°C to +80°C)
  • Sensor Mounting: M18 or 3/4" UNF threadTarget tube flanges available
  • Available in any measurement angle from 0-5mm to 0-800mm
  • Sealed to IP68 350ba

Technical Specs

Interface Types

 N/A Analog

Mechanics

 N/A Cylinder position sensor

Ratings

 N/A IP67

Technologies

 N/A Inductive

Environment

 N/A Gas - ATEX

Accuracy (> 17bits)

 N/A 25

Rated for Hazardous Environments (Oil & Gas, Mining)

 N/A No

Resolution

 N/A 14 bits
