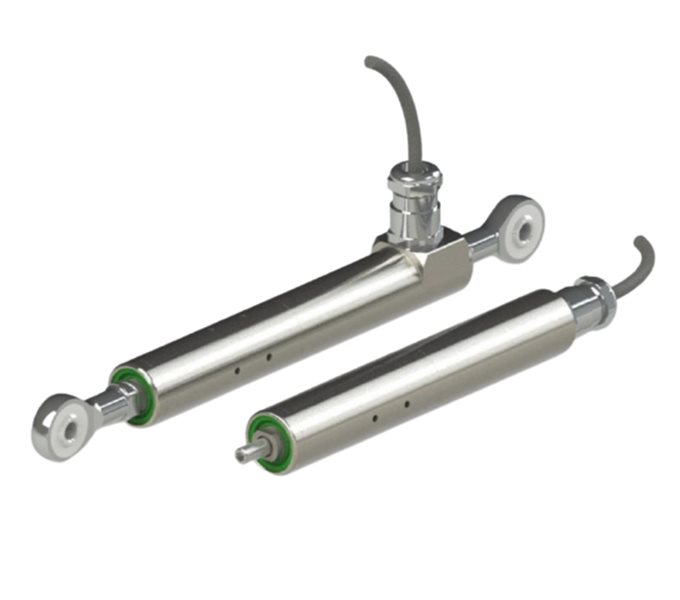

Based on Positek’s well-proven, non-contacting PIPS® (Positek Inductive Position Sensor) technology, the new S119 features a choice of industry standard output options calibrated to a user-specified travel range up to 350 mm. With typical independent linearity of ≤ ± 0.25% FSO at 20°C, the fully submersible push rod style sensor includes IP68-10 bar/IP69K environmental protection in a robust 19 mm diameter 316 stainless steel housing with a wide choice of mounting options.

Unit of Measure

General

Brands

 N/A Positek

Key Features

 N/A
  • Body Diameter: 19mm
  • Sensor Mounting: M5 rod eyes or body clamps
  • Available in any measurement angle from 0-5mm to 0-800m
  • Sealed to IP68 10bar, 100msw, 145psi(for 350bar sealing see S125)

Technical Specs

Interface Types

 N/A Analog

Mechanics

 N/A Cylinder position sensor

Ratings

 N/A IP68

Technologies

 N/A Inductive

Environment

 N/A Industrial

Accuracy (> 17bits)

 N/A 25

Rated for Hazardous Environments (Oil & Gas, Mining)

 N/A No

Resolution

 N/A 14 bits
