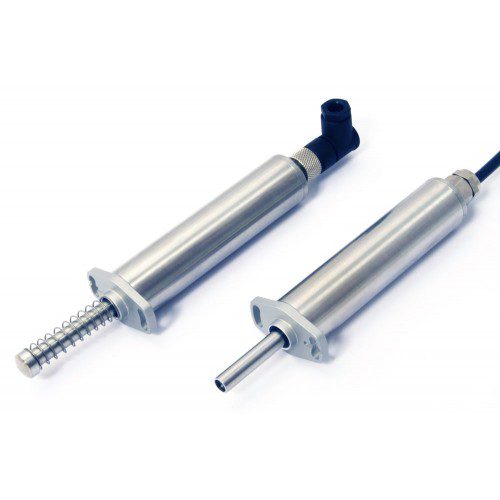

The P118 is a compact 19 mm diameter stainless steel linear position sensor designed for industrial applications requiring reliable performance in a small form factor.

It provides a linear output proportional to displacement and is calibrated to customer-specified travel ranges from 0–2 mm to 0–50 mm with integrated EMC protection.

Performance, repeatability, and stability remain consistent across a wide temperature range.

Installation is simple with mounting options including body clamps or a stainless steel flange with slotted holes for adjustment.

The stainless steel plunger can be supplied free or captive with female M4 thread or spring-loaded ball end, with environmental sealing rated to IP67.
