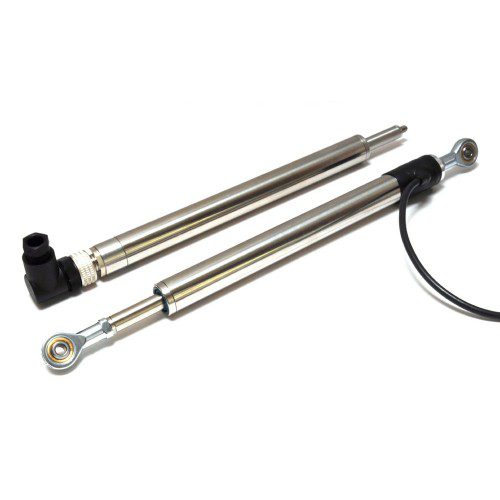

The P117 is a compact and space-efficient linear position sensor with a 19 mm body diameter, designed for industrial and scientific feedback applications.

It provides high accuracy, excellent repeatability, and stable performance across a wide operating temperature range.

The sensor features a stainless steel body tube and a 3/8" stainless steel push rod for durability.

Mounting options include M5 male stud and M5 rod eye bearing, with push rod configurations available as free or captive with M5 thread or rod eye.

The P117 delivers a linear output proportional to displacement and is calibrated to travel ranges from 0–5 mm to 0–350 mm with IP67 sealing and integrated EMC protection.
