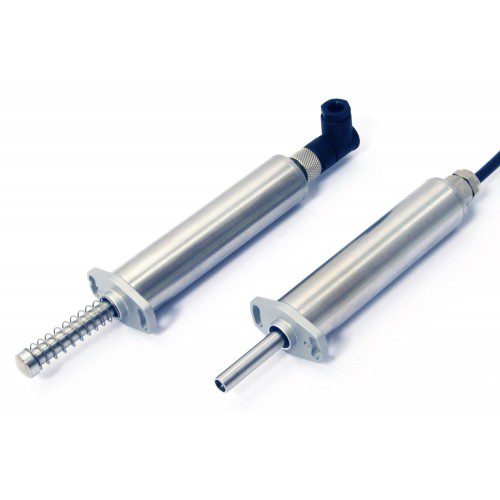

The intrinsically safe M118 is ATEX and IECEx approved for use in explosive gas, vapour, dust, and mining environments. It is designed for industrial applications requiring a compact short-bodied sensor for hazardous areas.

The sensor provides a linear output proportional to displacement and is calibrated to travel ranges from 0–2 mm to 0–50 mm with integrated EMC protection.

Performance, repeatability, and stability remain reliable across a wide temperature range.

The stainless steel body and plunger support flange or body clamp mounting, with plunger options including free or captive, female M4 thread, or spring-loaded ball end.

The M118 offers IP67 sealing and operates with Positek X005 galvanically isolated amplifiers supporting 0.5–9.5V or 4–20mA outputs.
