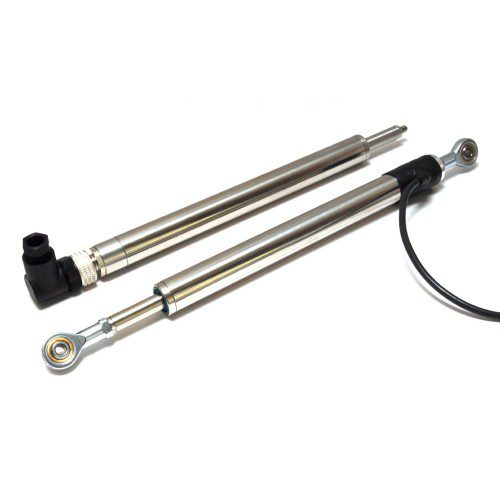

The intrinsically safe M117 is ATEX and IECEx approved for use in explosive gas, vapour, dust, and mining environments. It is designed for industrial and scientific feedback applications in hazardous areas.

The compact sensor features a 19 mm diameter body and provides a linear output proportional to displacement.

Each unit is calibrated to the required travel range from 0–5 mm to 0–350 mm with integrated EMC protection.

The stainless steel body and push rod provide durability, with mounting options including M5 male stud or M5 rod eye bearing.

The M117 operates with Positek X005 galvanically isolated amplifiers supporting 0.5–9.5V or 4–20mA outputs and offers IP67 environmental sealing.

Unit of Measure

General

Brands

 N/A Positek

Key Features

 N/A
  • ATEX/IECEx approved for mining
  • Sensor Mounting: M5 Rod Eyes, Body Clamps or M5 ThreadsSpring loaded pushrod option available
  • Available in any measurement range from 0-5mm to 0-350mm
  • Sealed to IP67

Technical Specs

Interface Types

 N/A Analog

Mechanics

 N/A Cylinder position sensor

Ratings

 N/A IP67

Technologies

 N/A Inductive

Environment

 N/A Mining-ATEX

Accuracy (> 17bits)

 N/A 25

Rated for Hazardous Environments (Oil & Gas, Mining)

 N/A No

Resolution

 N/A 14 bits
