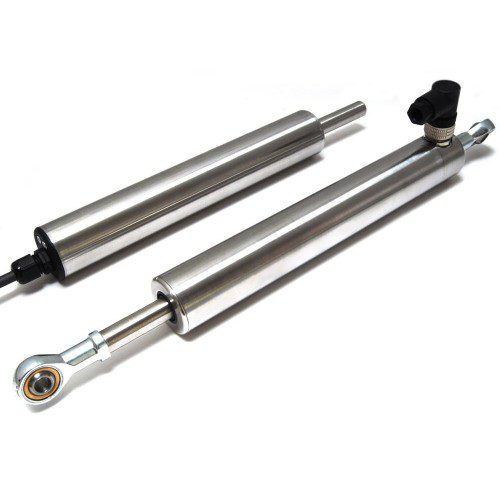

The intrinsically safe M111 is ATEX and IECEx approved for use in explosive gas, vapour, dust, and mining environments.

This heavy-duty version of the M101 features a stronger 12.6 mm push rod for applications with vibration or long horizontal travel.

The compact sensor provides a linear output proportional to displacement and is calibrated to travel ranges from 0–5 mm to 0–800 mm with integrated EMC protection.

The stainless steel body and push rod provide durability and stable performance across a wide temperature range.

The M111 operates with Positek X005 galvanically isolated amplifiers supporting 0.5–9.5V or 4–20mA outputs, with IP65/IP67 sealing and cable lengths up to 1 km.

Unit of Measure

General

Brands

 N/A Positek

Key Features

 N/A
  • ATEX/IECEx approved for mining
  • Sensor Mounting: M8 Rod Eyes, Body Clamps or M8 ThreadsSpring loaded pushrod option available
  • Available in any measurement range from 0-5mm to 0-800mm
  • Sealed to IP65/67 depending on connec

Technical Specs

Interface Types

 N/A Analog

Mechanics

 N/A Cylinder position sensor

Ratings

 N/A IP68

Technologies

 N/A Inductive

Environment

 N/A Mining-ATEX

Accuracy (> 17bits)

 N/A 25

Rated for Hazardous Environments (Oil & Gas, Mining)

 N/A No

Resolution

 N/A 14 bits
