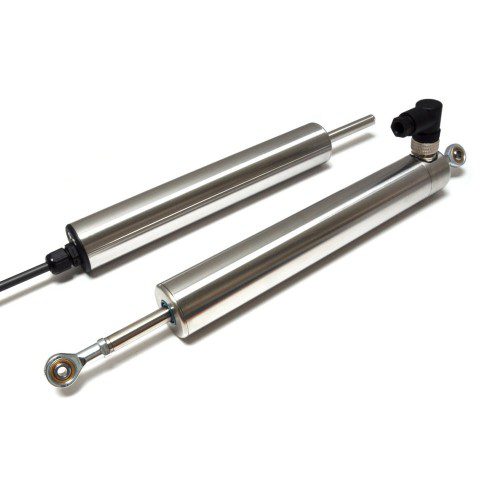

The intrinsically safe M101 is ATEX and IECEx approved for use in explosive gas, vapour, dust, and mining environments.

It is designed for industrial and scientific feedback applications requiring reliable performance in hazardous areas.

The compact sensor provides a linear output proportional to displacement and is calibrated to travel ranges from 0–5 mm to 0–800 mm with integrated EMC protection.

The stainless steel body and push rod ensure durability, with mounting options including M5 rod eye bearings and body clamps.

The M101 operates with Positek X005 galvanically isolated amplifiers supporting 0.5–9.5V or 4–20mA outputs, with IP65/IP67 sealing and cable lengths up to 1 km.

Unit of Measure

General

Brands

 N/A Positek

Key Features

 N/A
  • ATEX/IECEx approved for mining
  • Sensor Mounting: M5 Rod Eyes, Body Clamps or M5 ThreadsSpring loaded pushrod option available
  • Any stroke from 0-5mm to 0-800mm (e.g. 305mm)
  • Sealed to IP65/67 depending on connector/cable o

Technical Specs

Interface Types

 N/A Analog

Mechanics

 N/A Cylinder position sensor

Ratings

 N/A IP67

Technologies

 N/A Inductive

Environment

 N/A Mining-ATEX

Accuracy (> 17bits)

 N/A 25

Rated for Hazardous Environments (Oil & Gas, Mining)

 N/A No

Resolution

 N/A 14 bits
