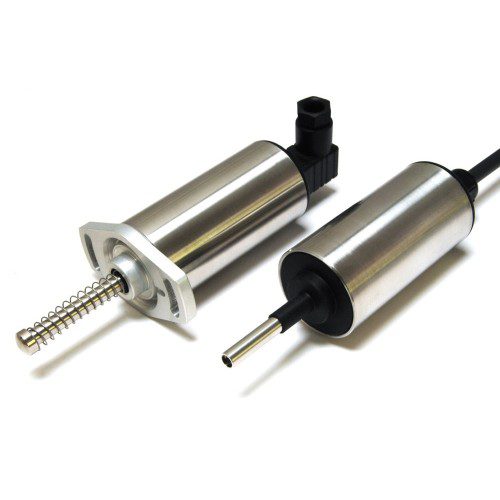

The intrinsically safe H133 linear position sensor is CSA approved for use in hazardous gas, vapour, and dust environments. It provides a linear output proportional to displacement and is calibrated to a measurement range from 0–51 mm to 0–100 mm.

The compact mid-body design delivers reliable performance with excellent repeatability and stability across a wide temperature range.

A rugged stainless steel body and plunger provide durability and environmental resistance.

Mounting options include flange or body clamps, with plunger configurations available as free or captive with female M4 thread or spring-loaded ball end.

The sensor supports IP65 or IP67 sealing and operates with galvanically isolated amplifiers such as the Positek G005 supporting 0.5–9.5V or 4–20mA outputs.
