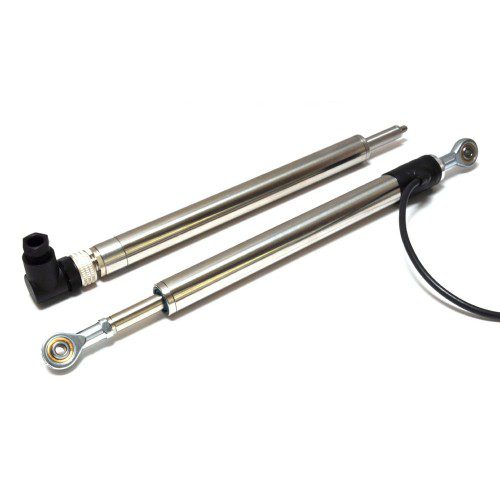

The intrinsically safe G117 is CSA approved for use in explosive gas and vapour environments. It is designed for industrial and scientific feedback applications requiring reliable sensor performance in hazardous areas.

The compact 19 mm diameter body and stainless steel push rod provide durability and stable performance across a wide operating temperature range.

Installation is simple with mounting options including M5 male stud and M5 rod eye bearing, with push rod configurations available as free or captive with M5 thread or rod eye.

The G117 delivers a linear output proportional to displacement and is calibrated to travel ranges from 0–5 mm to 0–350 mm with integrated EMC protection and IP67 sealing.

The sensor operates with galvanically isolated amplifiers such as the Positek G005, supporting 0.5–9.5V or 4–20mA outputs and cable lengths up to 1 km.
