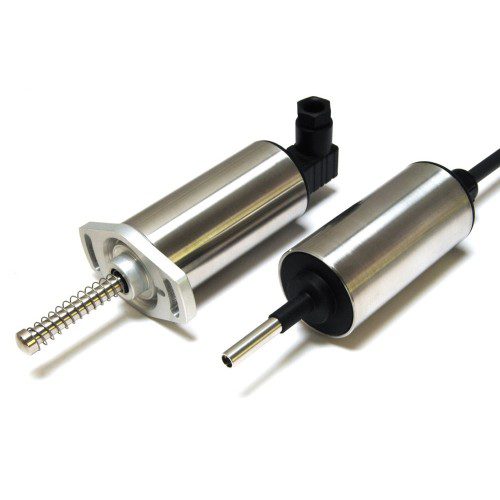

The intrinsically safe E133 linear position sensor is ATEX and IECEx approved for use in hazardous gas, vapour, and dust environments. It provides a linear output proportional to displacement and is calibrated to a measurement range from 0–51 mm to 0–100 mm.

The compact mid-body design offers reliable performance, repeatability, and stability across a wide temperature range.

A rugged stainless steel body and plunger ensure durability and environmental resistance.

Installation options include flange mounting or body clamps, with plunger configurations available as free or captive with female M4 thread or spring-loaded ball end.

The sensor operates with galvanically isolated amplifiers such as the Positek X005 supporting 0.5–9.5V or 4–20mA outputs and offers IP65 or IP67 sealing depending on connector or cable selection.
