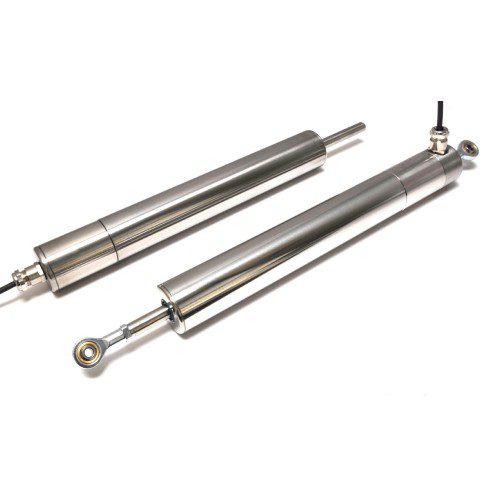

The intrinsically safe E114 is an ATEX and IECEx approved linear position sensor designed for reliable and accurate displacement measurement. It provides a linear output proportional to displacement and is calibrated to a customer-specified travel range from 0–5 mm to 0–800 mm.

Derived from the E101 design, the sensor is suitable for applications where it may be fully submerged in water at pressures up to 10 bar.

The E114 features a durable stainless steel body and push rod for long service life and environmental resistance.

Full EMC protection ensures stable performance in demanding environments.

The sensor operates with galvanically isolated amplifiers such as the Positek X005, supporting 0.5–9.5V or 4–20mA outputs with cable lengths up to 1 km.

Unit of Measure

General

Brands

 N/A Positek

Key Features

 N/A
  • ATEX/IECEx approved to: Ex II 1G : Ex ia IIC T4 GA (Ta = -40°C to +80°C)
  • Sensor Mounting: M5 rod eyes, body clamps or M5 threadsSpring loaded pushrod option available
  • Available in any measurement angle from 0-5mm to 0-800mm

Technical Specs

Interface Types

 N/A Analog

Mechanics

 N/A Cylinder position sensor

Ratings

 N/A IP67

Technologies

 N/A Inductive

Environment

 N/A Gas and Vapor - ATEX

Accuracy (> 17bits)

 N/A 25

Rated for Hazardous Environments (Oil & Gas, Mining)

 N/A No

Resolution

 N/A 14 bits
