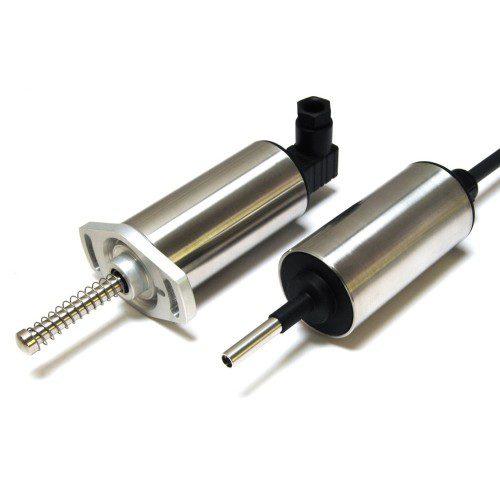

The intrinsically safe E103 linear position sensor is ATEX and IECEx approved for use in hazardous gas, vapour, and dust environments. It features a compact short-body design and provides a linear output proportional to displacement.

The sensor is calibrated to measurement ranges from 0–2 mm to 0–50 mm and includes integrated EMC protection.

A rugged stainless steel body and plunger provide reliable performance across a wide temperature range.

Mounting options include flange or body clamps, with plunger configurations available as free or captive with M4 female thread or spring-loaded ball end.

The sensor supports IP65 or IP67 sealing and operates with galvanically isolated amplifiers such as the Positek X005 supporting 0.5–9.5V or 4–20mA outputs.

Unit of Measure

General

Brands

 N/A Positek

Key Features

 N/A
  • ATEX/IECEx approved to: Ex II 1G : Ex ia IIC T4 GA (Ta = -40°C to +80°C)
  • Sensor Mounting: Flange or Body ClampsSpring loaded pushrod option available
  • Available in any measurement range from  0-2mm to 0-50mm (for 51-100mm range s

Technical Specs

Interface Types

 N/A Analog

Mechanics

 N/A Cylinder position sensor

Ratings

 N/A IP67

Technologies

 N/A Inductive

Environment

 N/A Gas and Vapor - ATEX

Accuracy (> 17bits)

 N/A 25

Rated for Hazardous Environments (Oil & Gas, Mining)

 N/A No

Resolution

 N/A 14 bits
